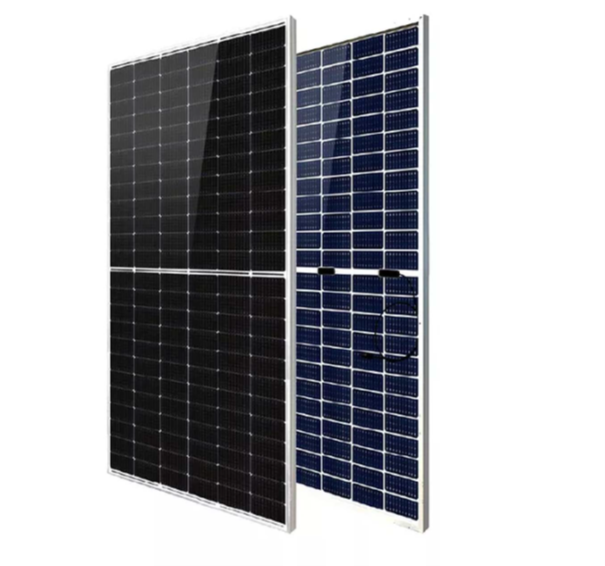

MONO MODULE 540W~555W
SG7G72M (H)-XXX
144 Pcs Half-Cut Bifacial
540W~555W
• Quality
• Reliability
• True Value
Better Temperature Coefficient
Excellent temperature coefficient gives higher yield in the long term
Low-light Performance
Outstanding performance in weak-light conditions
PID Free
Excellent PID resistance
Positive Tolerance
Positive tight power tolerance of +5W
Quality Assurance
Double-stage 100% EL inspection
warranting defect-free products, with 8 high-tech cameras to zoom in for a
closer examination
Durability And Weather Resistance
• Severe salt mist, ammonia & blown
• Certified for high snow(5400 pa)
and wind (2400 pa) loads
25 Years High Quality / Made In California
Linear Warranty
25 Years
Workmanship
Warranty
Mono Module
144 Pcs Half-Cut Bifacial 540W~555W

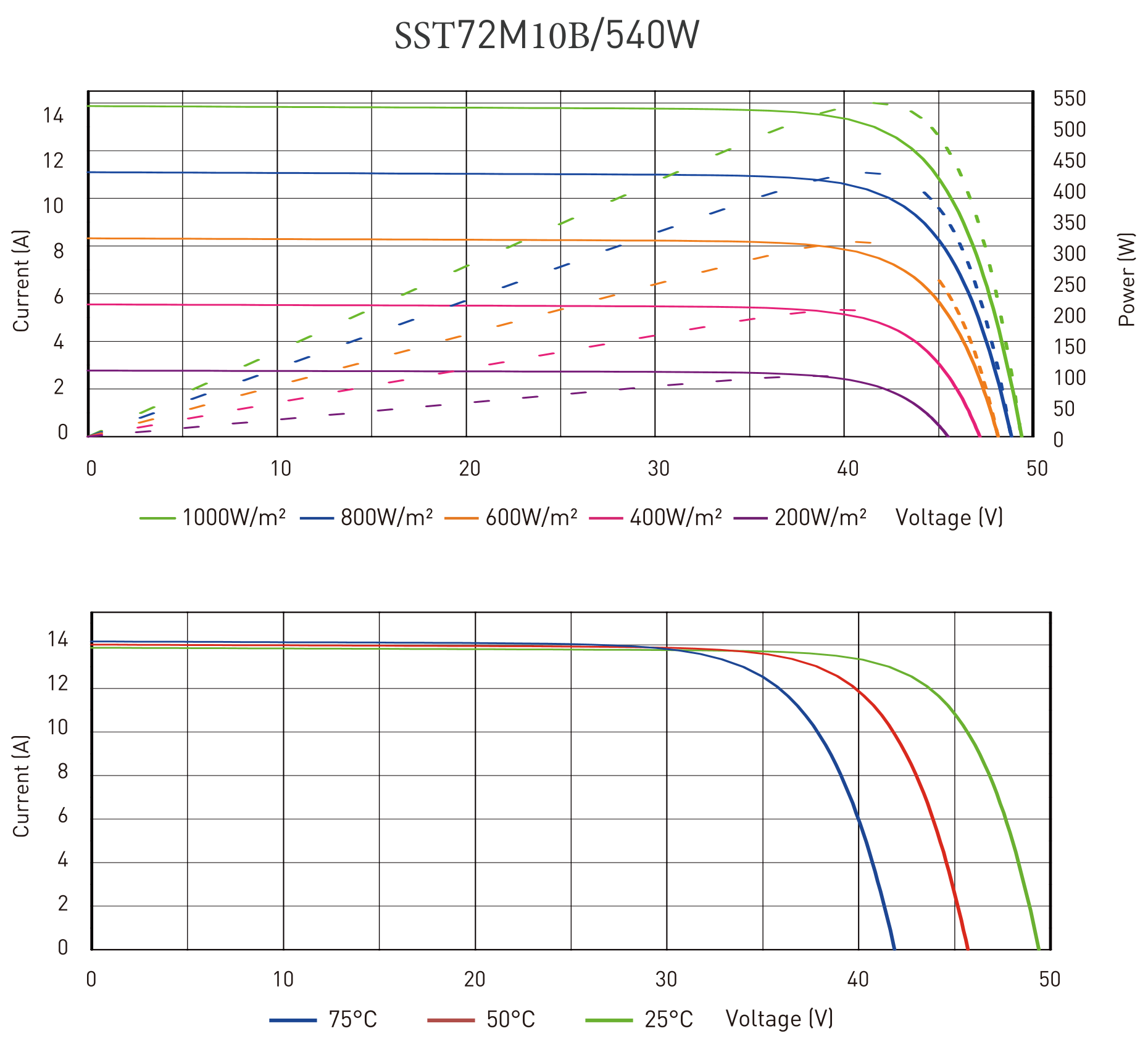

IV Curves

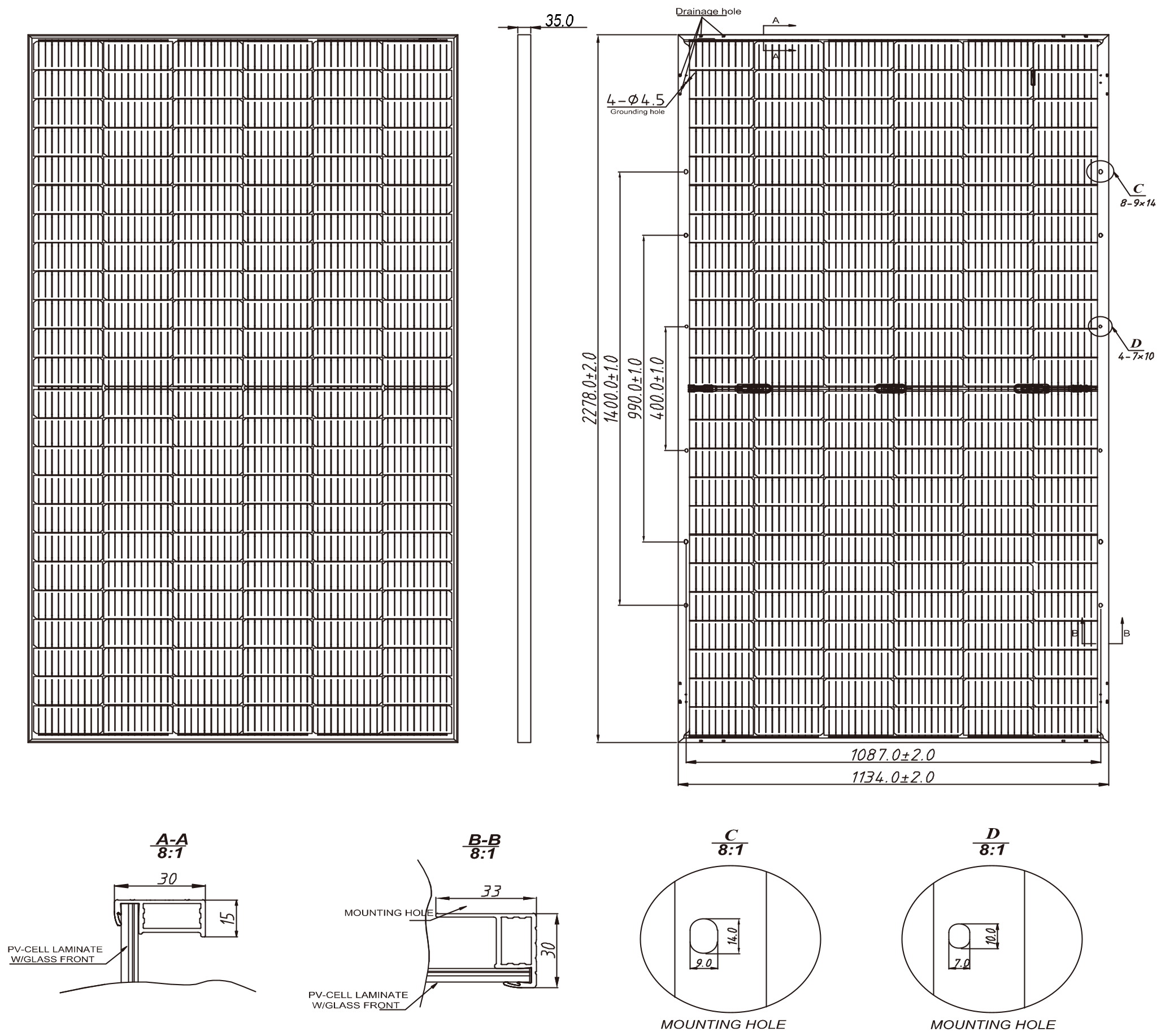

Engineering Drawing (mm)
Electrical Characteristics At STC
| Testing Condition | STC | NMOT | STC | NMOT | STC | NMOT | STC | NMOT |
| Maximum Power (Pmax/W) | 540 | 402 | 545 | 406 | 550 | 410 | 555 | 413 |
| Operating Voltage (Vmpp/V) | 41.64 | 38.8 | 41.80 | 39.0 | 41.96 | 39.1 | 42.12 | 39.3 |
| Operating Current (Impp/A) | 12.97 | 10.36 | 13.04 | 10.41 | 13.11 | 10.47 | 13.18 | 10.52 |
| Open-Circuit Voltage (Voc/V) | 49.60 | 46.7 | 49.76 | 46.8 | 49.92 | 47.0 | 50.08 | 47.10 |
| Short-Circuit Current (Isc/A) | 13.86 | 11.17 | 13.93 | 11.23 | 14.00 | 11.28 | 14.07 | 11.34 |
| Module Efficiency (%) | 20.90 | 21.1 | 21.30 | 21.50 | ||||
STC: Irradiance 1000W/m2, Spectra at AM1.5, Module Temperature 25°C. Power output tolerance: 0~+5W, Test uncertainty for Pmax: ± 3% NMOT: Irradiance 800W/m2, Spectra at AM1.5, Ambient Temperature 20°C, Wind speed 1m/s
| REAR SIDE POWER GAIN (REFERENCE TO 530W FRONT) | |||||
| Pmax gain | 5% | 10% | 15% | 20% | 25% |
| Pmax/W | 557 | 583 | 610 | 636 | 663 |
| Vmpp/V | 41.32 | 41.32 | 41.32 | 41.32 | 41.32 |
| Impp/A | 13.47 | 14.11 | 14.75 | 15.4 | 16.04 |
| Voc/V | 49.32 | 49.31 | 49.32 | 49.32 | 49.32 |
| Isc/A | 14.41 | 15.09 | 15.78 | 16.46 | 17.15 |
| APPLICATION CONDITIONS | |
| Maximun System Voltage | 1500V DC |
| Operating Temperature | -40°C ~ +85°C |
| Maximun Series Fuse | 30A |
| Safety Protection Class | Class II |
| Refer. Bifaciality Factor | 70%+5% |
| Fire Rating Performance | Type 4 |
| Mechanical Characteristics | |
| Cell type | Monocrystalline PERC 182*91mm |
| Number of cells | 144 (6×24) |
| Module dimensions | 2278x1134x35mm (89.69*44.65*1.38 inches) |
| Weight | 29kg (61.91lbs) |
| Front Glass | 3.2mm tempered glass with AR coating |
| Back Sheet | Transparent Backsheet |
| Junction box | IP68, 3 Bypass diodes |
| Cable | 4mm2 (0.006inches2), 300mm in length or Customized |
| Connector | T01/LJQ-3-CSY/MC4/MC4-EVO2 |
| Temperature Characteristics | ||
| Nominal Operating Cell Temperature (NOCT) | 43°C±2°C | |
| Temperature Coefficients of Pmax | -0.35%/°C | |
| Temperature Coefficients of VOC | -0.26%/°C | |
| Temperature Coefficients of ISC | 0.048%/°C | |
| Packaging | ||
| Standard packaging | 31 pcs/pallet | |
| Module quantity per 53’ container | 620 pcs |
Specifications in this datasheet are subject to change without prior notice.
